The TS80 Is a Tough, Powerful and Reliable Loader
Takeuchi continues to manufacture and service compact construction equipment, including track loaders, wheel loaders, excavators and skid steer loaders. Takeuchi offers the TS80 skid steer loader in both radial- and vertical-lift configurations. The TS80 provides a blend of power, performance, durability and operator comfort. The Takeuchi skid steer touts ground clearance, angle of departure, high travel speeds, tractive effort and digging forces for greater productivity.
The TS80 offers a load-sensing, pilot-controlled drive system that helps keep the machine operating at maximum efficiency, while available two-speed option provides an 11-mph maximum travel speed to improve productivity. The TS80R2 has an operating capacity of 2,825 lbs with a bucket breakout force of 5,845 lbf and tip load of 5,650 lbs. The TS80V2 has an operating capacity of 3,500 lbs, bucket breakout force of 5,920 lbf and tip load of 7,000 lbs. Both units come equipped with a 74-hp engine meeting all Tier 4 Final requirements, making them a class leader in performance, says the company.
The Takeuchi TS80 also provides a spacious operator’s station that allows the operator to spend many hours in the field while reducing fatigue. A multi-informational monitor displays the machine’s vitals and provides greater functionality. In addition to the pressure-relieving, quick-connect coupler block, a 14-pin connector is now standard equipment and delivers additional functions. Low effort, pilot-controlled joysticks are precise, responsive and easy to operate. The TS80 features an electronic dial throttle which allows operators to set or change the engine speed quickly and easily. Standard safety features provide additional value and include front and rear halogen work lights, large skylight, rearview mirror, backup alarm and a non-skid safety step.
A pressurized cab is available to keep dirt and other debris outside while creating a comfortable working environment inside. A 12-volt power port is provided to keep your cell phone or accessories fully charged, and an optional AM/FM/MP3/weather band radio is available to help keep track of everything that’s happening in the world.
Advice to Buyers
“Skid steers play key roles in certain segments of the market where track loaders are not cost effective to operate such as rocky or hard surface applications or where long distance travel is required,” says Michael Shebetka, product manager at Takeuchi-US. “Rated operating capacity for skid steers is 50 percent of tipping load, loader arm configuration [vertical versus radial] and the right tire selection suitable for your application are important factors to consider. Skid steers with auxiliary hydraulics or optional high flow make great attachment platforms for a wide range of attachments including angle brooms and cold planers.”
Takeuchi-US
519 Bonnie Valentine Way, Pendergrass, GA 30567
706-693-3600 | takeuchi-us.com

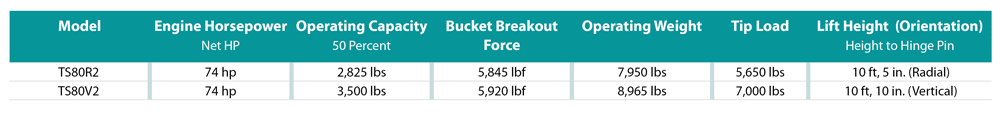

Click on table to enlarge
